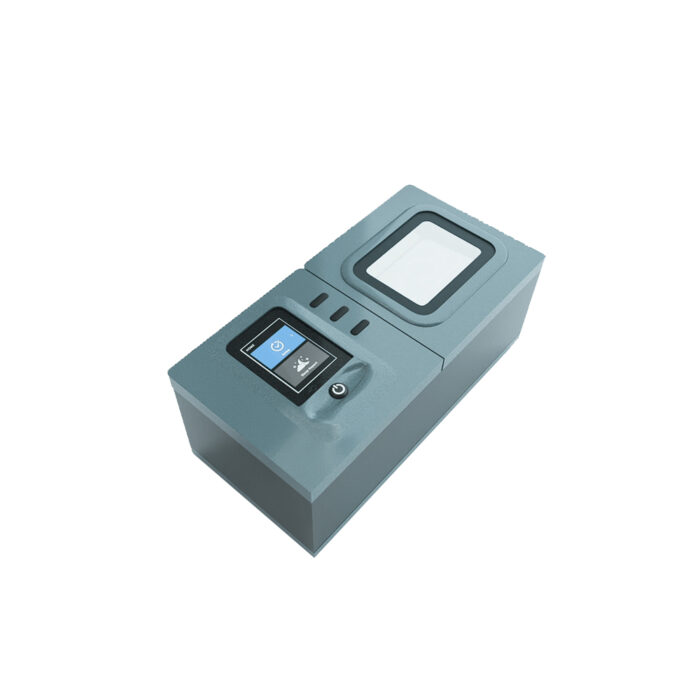

BiPAP VT60 ST

Deck Mount VT60 ST is a noninvasive ventilator, Offering a comprehensive range of therapy modes and flexibility to adjust the settings and accommodate various patient conditions.

• Modes: CPAP, S, ST, T, VAPS
• Heated Humidification
• In.trigger sensitivity
• Auto On/Off
• Ramp

The Deckmount VT60 ST is a BiPAP machine with multiple therapy modes, including Volume Assured Pressure Support (VAPS). This machine is lightweight, weighing just 1.7 kg, including the humidifier. It comes with a range of comfort features such as Auto On/Off, ramp time, gender-specific settings, leakage compensation, and many more.

Key Features of the Deckmount VT60 ST BiPAP Machine:

• Therapy modes

VT60 ST BiPAP machine is equipped with multiple therapy modes i.e. S, T, ST, CPAP, and VAPS mode. VAPS mode is beneficial for patients with conditions like COPD, neuromuscular disorders, or hypoventilation syndromes, where maintaining adequate ventilation is critical. This makes VT60 a versatile option both for patients and healthcare providers.

• Pressure Range

The machine operates at a wide pressure range. The IPAP ranges between 4-30 cmH₂O, while EPAP ranges from 4 to 28 cmH₂O. Additionally, the machine supports the Tidal Volume (VT) range of 150 to 1800 ml, ensuring proper ventilation for patients.

• Trigger Sensitivity

It is the sensitivity of the machine to sense the user’s breathing effort and initiate airflow accordingly. In VT60 ST, the setting can be customized between 1-5.

• Heated Humidification

VT60 ST BiPAP comes with a heated humidifier that prevents users from dryness and sore throat.

• Auto On/Off

Auto On/Off turns the machine on when the user wears the mask. Similarly, the machine turned off automatically when the mask is removed.

• Gender Selection

This feature enables users to select the gender between male and female to cater the gender-specific therapy.

• Ramp Time

The Ramp time feature allows the machine to start with lower pressure and gradually increase it, for a smoother transition to sleep. VT60 ST BiPAP comes with a Ramp time ranging between 5-45 minutes.

• Warranty

The machine comes with 2 year warranty.

Therapy Modes: CPAP, S, T, ST, VAPS

Operating Range: CPAP :4-20 cmH2O IPAP: 4-30 cmH2O | EPAP: 4-28 cmH2O VT: 150-1800 ml

Peak Flow: 240 LPM

Respiratory Rate: 4-45 BPM

Ramp/Rise Time: Off, 5-45 mins/ 100-900 ms

Humidification Level: Off, 1-5 level

Alarms: Leak Alert with Beep

Data Management: 1/7/31 days, 6 months, 1 year of detailed data

Dimensions: 280x140x95 mm/ 1700 g (Device with Humidifier)

Power Adapter: Input Range : 100-240V, 50/60 Hz, 3A 90 Watt (typical power consumption)

Operating Temperature / Humidity / Altitude: +5 c to +35 c/ 10-95% relative humidity, non-condensing/sea level to 2,591 m, air pressure range 735 hpa to 1013 hpa

Tubing: Standard (19 mm)

Air Outlet: 22 mm Air Outlet (STD)

Warranty: 2 Years (Repair/Replacement)*

Display: 2.8 in LCD

Sensitivity: 1-5 Levels

Ti / Ti min / Ti Max : 0.2-4 sec/ 0.2-3 sec/ 0.4-4 sec

Gender Selection: Male / Female

Conforms to Standards: IEC 60601-1-1 IEC 60601-1-2 IEC 80601-2-12 CDSCO, Class 2 (double insulated, Type BF, Ingress Protection IP22)
